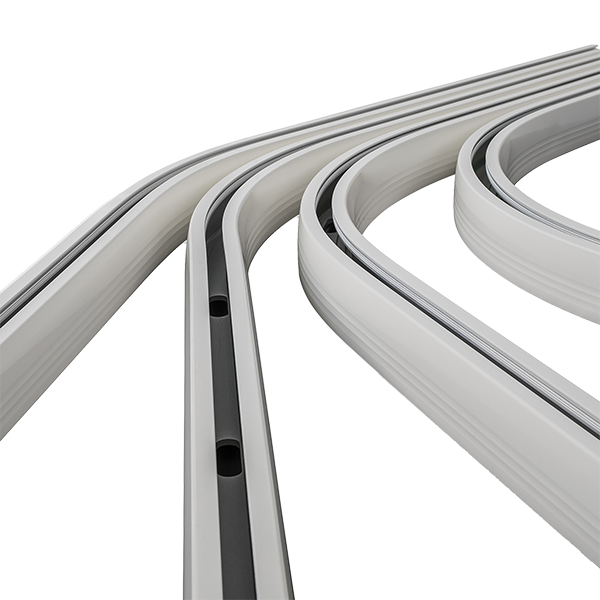

Molift Air Rail System
Ceiling Hoist System
The Molift Rail System (MRS) is a cost effective solution for hospitals, institutions, nursing and rest homes. MRS is easily integrated and is aesthetically adjusted to the design of the room to make a practical work place for nurses and caregivers, as well as an attractive environment for patients and visitors.
Can be used with the Air 200, 350 & 500 and the Nomad 255
Designed and Manufactured in Norway
This product qualifies for Ministry of Health & ACC funding.
Find out morePRICE ON APPLICATION
Traverse System Mounted in Ceiling or Wall
The ceiling track hoist H system covers the entire room. This enables lifting regardless of where the furniture and the patient are located in the room.
Single Rail ceiling hoist system
Installed above the areas which are most important. Mainly for getting up or transferring from bed to chair or similar.
Single Rail with Curve
Extends the area for transfer and will allow the ceiling lift track system to pass through one or more rooms. A switch can be added to cover more pick up points. This will enable transfer from bed to chair, toilet, shower or bath.
Various Weight Classes
Depending on the model of Molift Air selected and the desired application the Molift Rail System can be designed with a safe working load from 200kg to 500kg.
Washing instructions
Can be wiped off. Clean/disinfect the product using a standard non-abrasive cleaning agent with a pH between 5 and 9, or with a 70% disinfectant solution.
| Rails | 3 dimensions: H62, H112, H142 |
| Switches | Rail switch and Traverse switch |
| Max distance between fixtures | 6 m |
| Colour | White |
| Length | Up to 7 m |
| Height | 62, 112, 142 mm |
| Safe Working Load SWL | 160–500 kg |
| Material | Aluminium |
