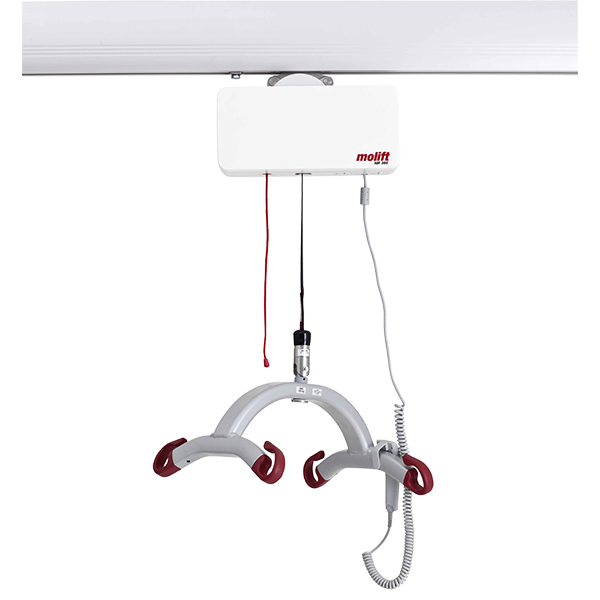

Molift Air
Lift Motor for Ceiling Hoist System
Molift Air is an innovative and functional lift motor. It’s a fixed motor that fits all wall and ceiling mounted rail systems. With a 3 metre hoisting interval the Molift Air can lift a patient directly from the floor. The Molift Air is very light, weighing only 7.5kg. Combined with a unique, quick-release coupling system, this makes it easier to move between rail systems. It also makes the Molift Air easier to handle during installation and servicing.
Molift Air 300: SWL 300Kg
Designed and Manufactured in Norway
This product qualifies for Ministry of Health & ACC funding.
Find out morePRICE ON APPLICATION
More Comfortable
The Molift 4 Point Suspension system distributes weight and pressure evenly to compliment the natural movement of the body and ensure maximum comfort for the patient. The patient is correctly positioned after the transfer without requiring any further adjustment reducing the risk of injury to the carer.
Safer
In the event of on emergency the emergency stop is activated by an easily reachable pull string. The patient can then be lowered using an electrical or mechanical emergency lower.
Charging Options
There are two charging options for the Molift Air. Option 1 is wall mounted charging via the hand control and option 2 is in rail charging.
Safe to use around the Bathroom
The hand control and hoist motor meet IPX4 standards for use in wet areas.
Molift Air
Transfer from Bed to Chair
Transfer from Chair to Bed
Lift Room to Room
Mount and Dismount the Air
Change Suspension
Washing instructions
Can be wiped off. Clean/disinfect the product using a standard non-abrasive cleaning agent with a pH between 5 and 9, or with a 70% disinfectant solution.
| Maximum user weight | 300kg (660 lbs) |
| Total weight (with SLA battery) | 8.56Kg (18.87 lbs) |
| Max distance between fixtures | 6m |
| Length | 360mm |
| Width | 190mm |
| Height | 195mm |
| Battery | 26.4 V SLA 2.6 Ah |
| Battery charger | 100–240 V AC, 40–60 Hz |
| Battery charge time | 6 hours |
| Motor | 24 V DC |
| Hoisting interval | 2600mm |
| Hoisting speed 75 kg | 60mm/sec |
| Expected lifetime | 30 000 lifts SWL/10 years |
| Molift Service Software | Included |
| Emergency stop | Reachable from floor with string. Reset possible from floor |
| Protection class; hand control & hoist motor | IPX4 |
CLICK HERE to open the sling accessory brochure

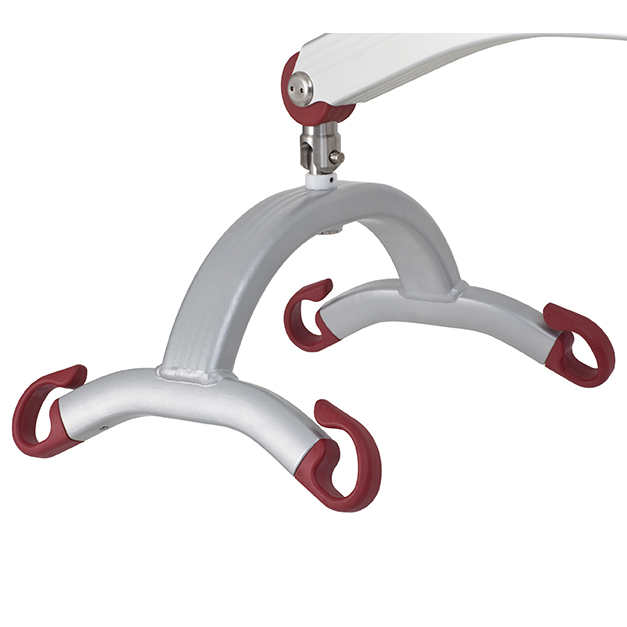

4-Point Suspension Aluminium
The light weight sling bar is easy for the caregiver to change and carry.
Maximum user weight (SWL) 300 kg.
| Description | Product order code |
|---|---|
| 4-Point Suspension Aluminium, Medium | XM1830011 |
| 4-Point Suspension Aluminium, Large | XM1830010 |

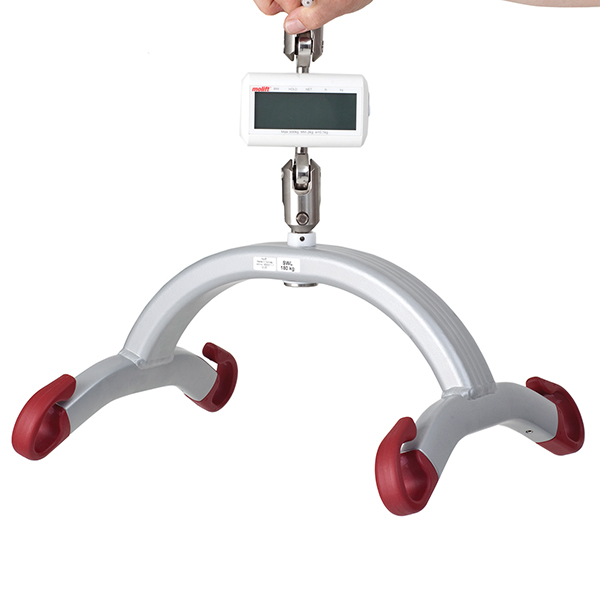

Molift Air Weight Scale set (incl 4-point suspension)
The Molift Air weight scale is approved Class III and complies with all technical standards. It can also calculate BMI (Body Mass Index) with a simple touch.
| Description | Product order code |
|---|---|
| Molift Air Weight Scale set (incl 4-point suspension) | XM1840000 |
More Comfortable
The Molift 4 Point Suspension system distributes weight and pressure evenly to compliment the natural movement of the body and ensure maximum comfort for the patient. The patient is correctly positioned after the transfer without requiring any further adjustment reducing the risk of injury to the carer.
Safer
In the event of on emergency the emergency stop is activated by an easily reachable pull string. The patient can then be lowered using an electrical or mechanical emergency lower.
Charging Options
There are two charging options for the Molift Air. Option 1 is wall mounted charging via the hand control and option 2 is in rail charging.
Safe to use around the Bathroom
The hand control and hoist motor meet IPX4 standards for use in wet areas.
Molift Air
Transfer from Bed to Chair
Transfer from Chair to Bed
Lift Room to Room
Mount and Dismount the Air
Change Suspension
Washing instructions
Can be wiped off. Clean/disinfect the product using a standard non-abrasive cleaning agent with a pH between 5 and 9, or with a 70% disinfectant solution.
| Maximum user weight | 300kg (660 lbs) |
| Total weight (with SLA battery) | 8.56Kg (18.87 lbs) |
| Max distance between fixtures | 6m |
| Length | 360mm |
| Width | 190mm |
| Height | 195mm |
| Battery | 26.4 V SLA 2.6 Ah |
| Battery charger | 100–240 V AC, 40–60 Hz |
| Battery charge time | 6 hours |
| Motor | 24 V DC |
| Hoisting interval | 2600mm |
| Hoisting speed 75 kg | 60mm/sec |
| Expected lifetime | 30 000 lifts SWL/10 years |
| Molift Service Software | Included |
| Emergency stop | Reachable from floor with string. Reset possible from floor |
| Protection class; hand control & hoist motor | IPX4 |
CLICK HERE to open the sling accessory brochure
4-Point Suspension Aluminium
The light weight sling bar is easy for the caregiver to change and carry.
Maximum user weight (SWL) 300 kg.
| Description | Product order code |
|---|---|
| 4-Point Suspension Aluminium, Medium | XM1830011 |
| 4-Point Suspension Aluminium, Large | XM1830010 |
Molift Air Weight Scale set (incl 4-point suspension)
The Molift Air weight scale is approved Class III and complies with all technical standards. It can also calculate BMI (Body Mass Index) with a simple touch.
| Description | Product order code |
|---|---|
| Molift Air Weight Scale set (incl 4-point suspension) | XM1840000 |
