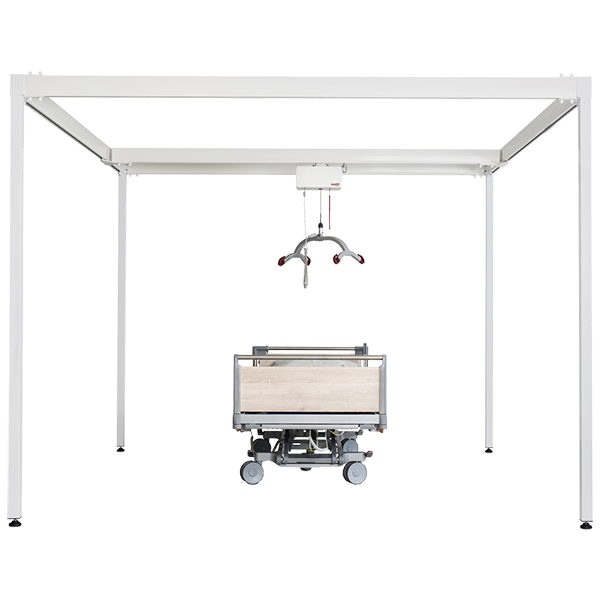

Molift Quattro 4x4m
Freestanding Gantry Lift System
This stable gantry is easy to install without the need to mount additional fixtures on wall or ceiling. It is also suited for temporary hoist applications in nursing or private homes. Molift Quattro solves all overhead lifting situations together with the Molift Air or Molift Nomad hoist motor and a sling. With a lifting capacity of max 300 kg, it is ideal for lifting and transferring a person from or to bed, floor, chair, wheelchair, toilet etc.
4 x 4m Code: XM1600035
Designed and Manufactured in Norway
PRICE ON APPLICATION
Available dimensions
Molift Quattro comes in two sizes: 3×3 meters and 4×4 meters. But can be configured to suit your needs. The length of the posts are a fixed 2.46m height.
Traverse System
Molift Quattro is a traverse gantry system which provides unlimited freedom to move the user anywhere within the 4 posts.
Easy to install
Molift Quattro is designed to be installed in a short time by one or (preferably) two persons.
Charging
You can mount the charging unit of your chosen lift motor to either a post or the wall. When not in use place hand control in charger.
Washing instructions
Can be wiped off. Clean/disinfect the product using a standard non-abrasive cleaning agent with a pH between 5 and 9, or with a 70% disinfectant solution.
| Length | A: Rail length 4m |
| Height | B: 2,33m - 2,38-2,43m with adjustable foot |
| Width | D: 3,16-4,16 m |
| Depth | E: 3,16-4,16 m |
| Maximum internal space | A x C: Without foot: 4 x 2.19 m. With foot: 4 x 2.24 m - 2.29 m |
| Safe Working Load SWL | 300 kg |
| Material | Steel, Anodized aluminum, plastic |
| Total Weight | 4x4m: 131,55 kg |
| Weight | Travers Kg/m: 4.2 kg/m Leg with adjustable foot: 8.5 kg Corner: 27 kg |
| Expected Lifetime | 10 years |
