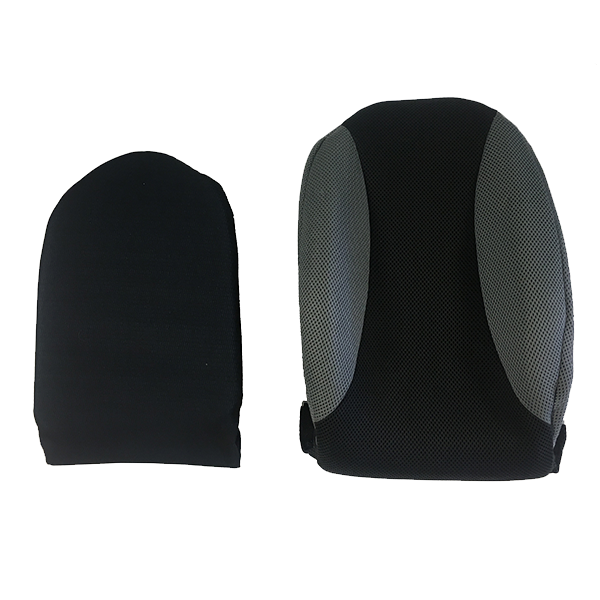

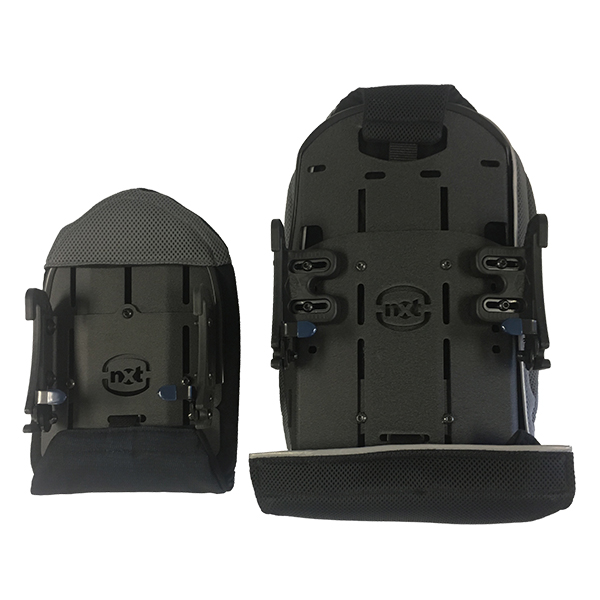

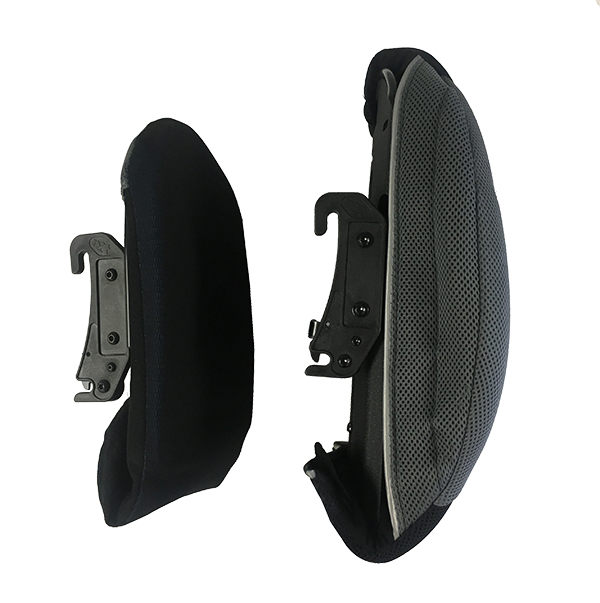

Nxt Xtend Kids – Height Adjustable Backrest
Pediatric Height Adjustable Backrest
NXT created the world’s first height adjustable pediatric wheelchair backrest. With a subtle 1”/2.5cm deep contour, users have the option to add additional lateral supports to the sides to customize the amount of lateral support the child needs. As the user grows, the wheelchair backrest grows with them, increasing in height to accommodate growing bodies, without sacrificing pelvic support.
The backrest is a lightweight (0.79kg) solid design, together with ease of use it makes this the perfect back for pediatric users.
- Two-piece lightweight aluminum shell (height adjustable)
- Dual density foam back cushion
- Breathable stretch fabric cover
- Installation hardware – QuickFit Mounting System
- One-hand quick release [14” (35.6cm) wide model only]
Available sizes (width x adjustable height):
35×25-32 cm/ 14×10-12.5 inches
25×20-27 cm/ 10×8-10.5 inches
30×23-29 cm/ 12×9-11.5 inches
Designed and Manufactured in Canada
This product qualifies for Ministry of Health & ACC funding.
Find out morePRICE ON APPLICATION
Quick Release
One-hand quick release allows for the Nxt backrest to be removed from the chair with ease. [14” (35.6cm) wide model only]
Height Adjustable
Precise height adjustment to allow back to grow with the child, as well as to accurately refine contour/lateral support placement. Height adjustable 2.5″ / 6.4cm
Customisation Options
Other customisation options include; depth, 25° posterior and anterior angle adjustment and even rotation to accommodate A-symmetrical posture. In addition, it has slots for head and lateral supports or belts and harnesses.
Pelvic and Scapular Cutout
The Shell has a scapular cutout to support the spinal column along with creating shoulder freedom for improved wheelchair propulsion and mobility. The Pelvic cutout allows for optimal pelvic positioning and support of the PSIS.
Xtend Adjustable Back Support
Nxt Xtend Kids - Height Adjustable Backrest
Quick Fit Mounting System
Lateral Supports
Lateral Support Application
Lateral Supports Installation
Multifit Head Support
Used for | Children, it has low profile contour and adjusts as the child grows. |
Cushion material composition | Dual density foams |
Supplied with back-shell | Yes, 2 section backshell. Height Adjustable. |
Quick release backshell | Yes, one hand quick release for removal |
Adjustable Back Angle | 25° Anterior. 25° Posterior |
Weight | 0.79kg |
Weight Capacity | 136kg |
Size: XDNHAKCB10/8-10.5 | Width 10"/25.4cm x Height 8-10.5"/20-27cm. Fits wheelchair width: 10"/25.4cm |
Size: XDNHAKCB12/9-11.5 | Width 12"/30.5cm x Height 9-11.5"/23-29cm. Fits wheelchair width: 12"/30.5cm |
Size: XDNHAKCB14/10-12.5 | Width 14"/35.6cm x Height 10-12.5"/25-32cm. Fits wheelchair width: 14"/35.6cm |
This product has a comprehensive list of Lateral supports and Headrests.
please CLICK HERE to open the brochure that shows all the accessories available.
