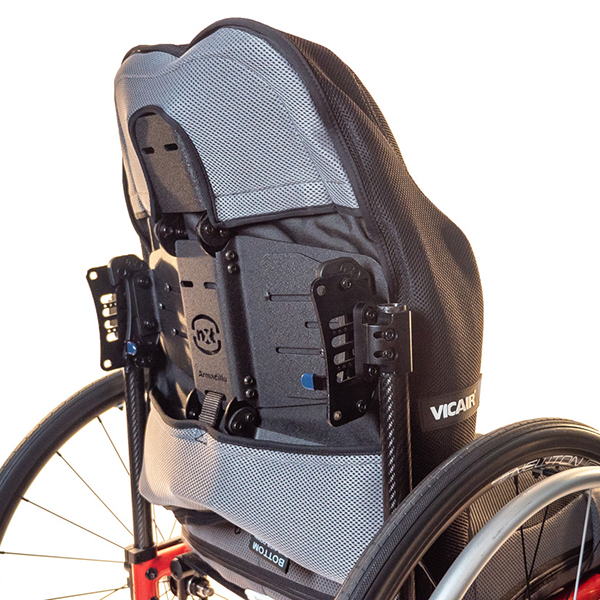

Vicair Nxt Armadillo Backrest
Adjustable Backrest with Vicair Technology Cushion

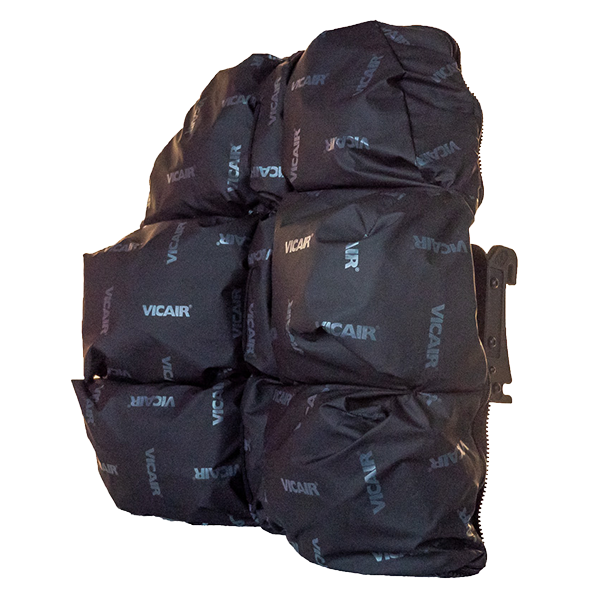

This Armadillo adjustable backrest features a three-section modular shell. Designed to fit the unique contour of the user’s spine and to accommodate users with: Kyphosis, Lordosis, Scoliosis, rotational asymmetry and other spinal deformities. For ultimate pressure care Nxt teamed up with Vicair to combine the Armadillo with a Vicair back cushion consisting of multiple pockets containing SmartCells. The pockets AirCell content can be adjusted to suit the shape of the back. The central recessed pockets are designed for offloading spine pressure zones.
Available sizes (width x height):
30×40 cm / 14×16 inches
40×40 cm / 16×16 inches
45×45 cm / 18×18 inches
50×45 cm / 20×18 inches
55×45 cm / 22×18 inches
Designed and manufactured in The Netherlands and Canada
This product qualifies for Ministry of Health & ACC funding.
Find out morePRICE ON APPLICATION
Vicair Airfilled SmartCells
Smartcells are air-filled Tetrahedron-shaped cells. Hundreds of SmartCells are found in each Vicair cushion, resulting in perfect pressure redistribution and stability. For personalisation, cells can be added and removed.
Quickly and Easily Adjusted
The backrest is quickly and easily adjusted, even with the client in the chair. The seat depth can be increased by reversing the brackets. Clamps can be installed or removed without dismantling them.
Independent Angle Adjusment

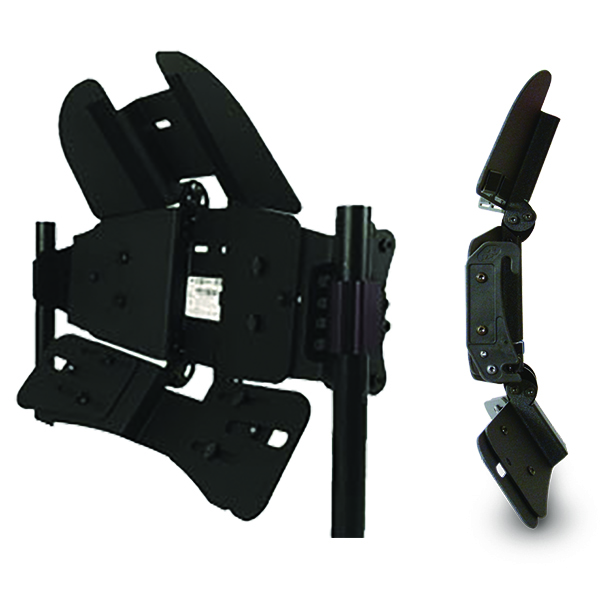

Other customization possibilities include; The top shell has a 20° posterior and a 40° anterior angle. The bottom shell has a 30° posterior and 30° anterior adjustability. The backrest can even rotate to accommodate an asymmetrical position.
Optimal Positioning
The shell’s scapular shape offers support to the spinal column while still allowing for shoulder mobility. The Pelvic cutout enables appropriate pelvic posture and PSIS assistance.
Armadillo Backrest
QuickFit Mounting System
Vicair Quality Assurance
Lateral Support Application
Lateral Support Installation
Multifit Head Support
| Used for | Spinal deformities, Kyphosis, Lordosis & pelvic support. Including; Scoliosis, rotational asymmetry & improved comfort for pain |
| Cushion material composition | Vicair SmartCells 9 Adjustable sections |
| Supplied with back-shell | Yes, 3 section backshell Posture angle adjustable |
| Quick release backshell | Yes, one hand quick release for removal |
| Adjustable Back Angle | 25° Anterior. 25° Posterior |
| Backshell contour - upper | 40° Anterior, 20° Posterior |
| Backshell contour - lower | 30° Anterior, 30° Posterior |
| Available Sizes (width x height) | Click the COMPARE button above to view all sizes and product codes |
