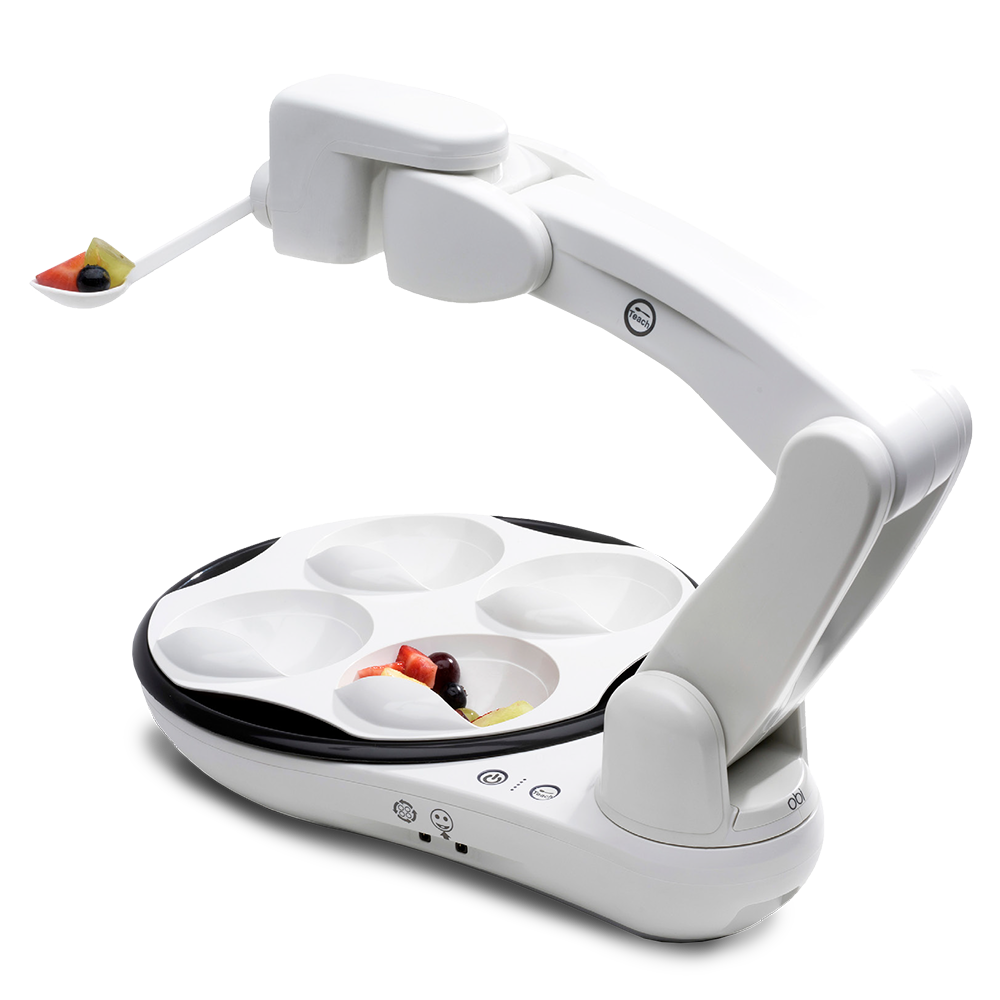

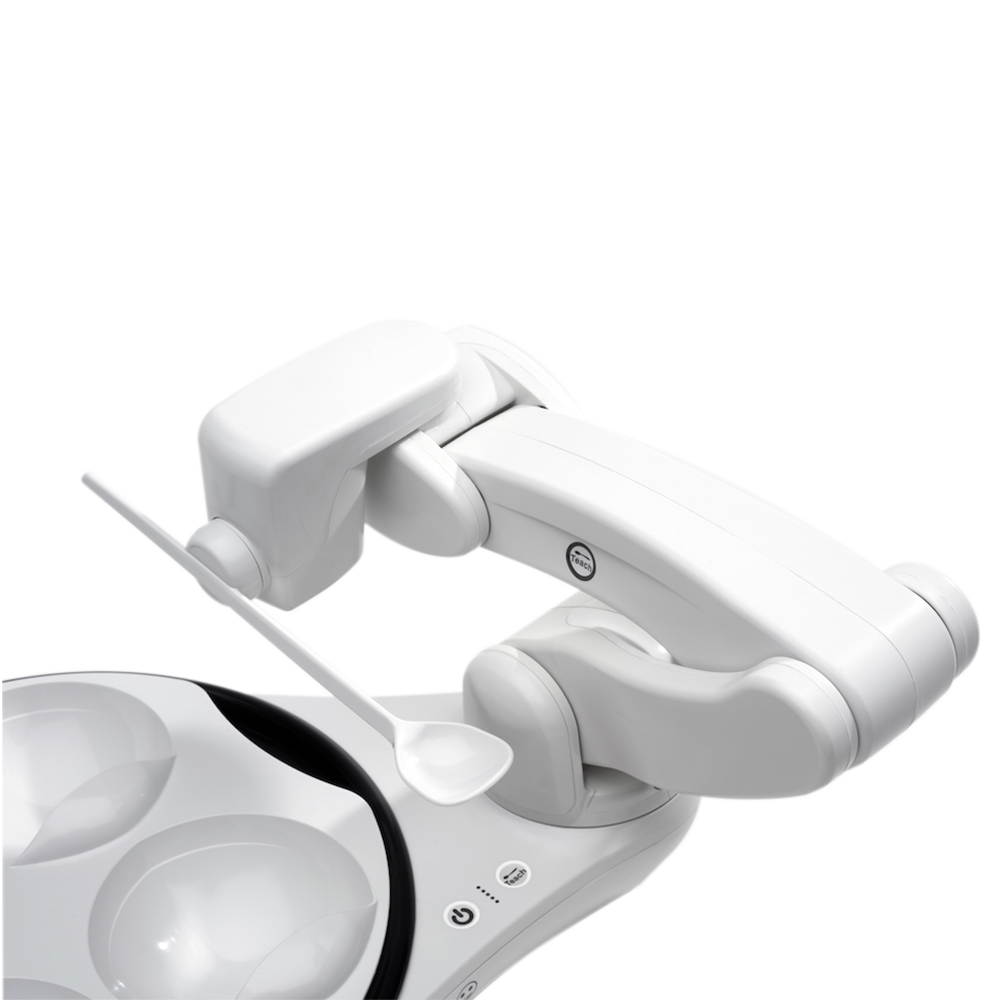

Obi – Generation 2
Independent Dining Robot
- Obi is the first of its kind, revolutionary dining device for individuals who lack upper extremity function.
- With the touch of a switch, Obi allows users to select between four compartments of food and to command when the food is delivered to their mouth.
- Obi increases independence, social interaction, and effective food capturing like never before!
- Obi accommodates a spectrum of people who have difficulty feeding themselves. Users should possess the ability to safely, and successfully, operate Obi as well as the ability to chew and swallow without assistance.
- #1 Occupational Therapist Recommended Robotic Feeding Device in the U.S.
Incl. Plate, 2x Spoons, 2x Buttons, Placemat & Charger
Product Code: XDEIFD500-030
Designed and Manufactured in the USA
Virtual Demos available multiple times per week: https://meetobi.com/webdemos/
This product qualifies for Ministry of Health & ACC funding.
Find out morePRICE ON APPLICATION
Effective Food Capture
Obi’s patented features, including multi-directional food capture, portion control, spoon wiping and food re-positioning allow for optimal and efficient food delivery.
Customized Delivery
Obi’s setup process is fast and user-friendly. Through the Teach Mode, Obi allows the caregiver to quickly position the device for optimal use, and tailor the food delivery location for each diner.
Switch Operation
After the delivery location is set, the diner controls their experience through the use of two accessibility switches – one to select the food, and one to command food delivery. The switch ports are 3.5 mm barrel jack (headphone jack) connectors, which makes Obi compatible with a variety of switches on the market – even Sip-and-Puff attachments!
Eating out with Obi
Obi is perfect for eating out! Obi is portable, weighs approximately 3Kg and comes equipped with a rechargeable lithium ion battery that provides up to 3 hours of eating time per full charge.
Effective Food Capture
Teach Mode
Smooth Moves

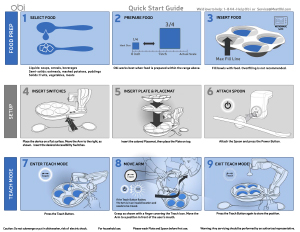

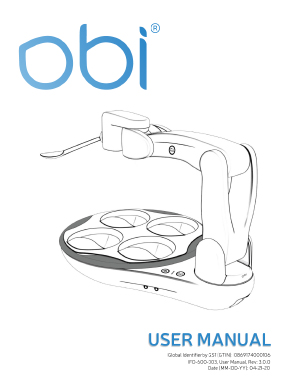

User Setup Guide
Obi Switches
Dining with Obi
The Inspiration Behind Obi
| Weight | 3.49kg/7.7 pounds |
| Transport Dimensions | 30.5cm x 43.2cm x 15.2 cm / 12″ x 17″ x 6″ |
| Lowest Food Delivery Height | 5cm/2″ below the mounting surface |
| Maximum Food Delivery Height | 38.1cm/15.3″ above the mounting surface |
| Eating Time per Full Charge | Up to 4 hours |
| Battery Type | Lithium ion (48Wh / 3.2Ah) |
| BPA free | Plate, Placemat, and Spoons |
| Food Bowl Volume Capacity | 4 fluid ounces per bowl (up to the fill line) |
| Food Preparation Size | Up to the size of a raspberry: 9mm x 9mm - 3/4″ x 3/4″ |
| Dishwasher-Safe Components | Plate, Placemat, and Spoons (top rack) |
| Microwave-Safe Components | Plate (up to 1 minute intervals at a low power setting – <600 watts) |
| Refrigerator or Freezer-Safe Components | Plate |
| ISO 13485:2016 Certified | Medical Devices – Quality Management Systems – Requirements for Regulatory Purposes |
| FDA Compliant | Class I Medical Device, 510(k) exempt |
| CE Compliant | Active, Class I Medical Device, Non-Sterile, Non-Measuring |
| EN ISO 14971 R2012 | Application of risk management to medical devices |
| IEC60601-1 | Medical electrical equipment – Basic safety and essential performance |
| IEC60601-1-2: 2014 | Medical electrical equipment – Electromagnetic compatibility (EMC) for medical devices |
| IEC60601-1-6: 2010 | Medical electrical equipment – Usability |
| NEN EN 15284: 2007 | Materials and articles in contact with food stuffs. Test method for the resistance to microwave heating of ceramic, glass, glass-ceramic or plastic cookware. |
Ken F
March 2021Primary Use:
Medical Conditions:
Motor Neurone Disease (MND)
I enjoy my mealtimes. I like the normality OBI gives me
“With a chance to try OBI out – I was curious. I found it easy to use. It actually quite impressed me with how it allowed me to eat our normal food & recipes, without me relying on others during the meal. The only change was that while serving up Caryn cuts up all my food for me, placing it in the 4 OBI bowls. All I needed to do was touch the button and I was eating.
OBI gives me a chance to eat for myself. Whether it’s as a couple, with family & friends over or using it at restaurants I enjoy my mealtimes. I like the normality it gives me. It has become part and parcel of our life and family. OBI packs up easily for trips with us to family and on holiday.”
Luca
2017Primary Use:
Independent Feeding
Medical Conditions:
Go Fund Me gave Luca his Obi
The Obi team met Luca traveling to one of our tradeshows, the annual Arthrogryposis convention through AMCSI. He and his family instantly fell in love with Obi. His family setup a GoFundMe page and within 14 hours, they reached their entire goal!!
“Thank you for donating! We reached our goal! The Obi is Luca’s to keep. We are thrilled and deeply grateful! Thanks again, John, Katie, Luca and Juliette”
Watch Luca operate the Obi with his feed and independently eat. VIEW
Kevin F
Primary Use:
Medical Conditions:
It’s changed my life!
“I love Obi because it gives me a sense of independence and freedom to have choices about what I eat throughout the day, when I eat throughout the day, and just really allows me to have energy throughout my day so that I can do my job (Attorney) and be productive. So it’s changed my life!”
Your Obi comes with all of the accessories below (Incl. Plate, 2x Spoons, 2x Buttons, Placemat & Charger)
You can purchase extra accessories for your convenience.
Obi Plate
| Description | Product order code |
|---|---|
| Obi additional accessory - Plate | XDEIFD500-034 |
| Obi additional accessory - Placemat | XDEIFD500-037 |
Obi Spoon
| Description | Product order code |
|---|---|
| Obi additional accessory - Spoon Lge | XDEIFD500-020 |
| Obi additional accessory - Spoon Sml | XDEIFD500-019 |
Obi Black button/switch
| Description | Product order code |
|---|---|
| Obi additional accessory - Black button/switch | XDEIFD900-009 |
Obi Charger
| Description | Product order code |
|---|---|
| Obi additional accessory - Charger | XDEIFD500-021 |
DIRECT PURCHASE
You can purchase all our equipment direct from Morton & Perry:
• Contact us for more information or
• Book a visit with one of our territory managers, if you require
a product demonstration.
ACC INSURANCE
If ACC covered your injury or accident related condition, they could also help you with aids and equipment.
ACC also pays for the aids and equipment you need to recover from your injury. You can use these aids and equipment for as long as you need them to support your injury.
Visit their website for more information: www.acc.co.nz
Phone 0800 101 996 (Monday to Friday, 7am – 7pm)
Email: [email protected]
MINISTRY OF HEALTH FUNDING
Non-accident related conditions are funded by the Ministry of Health (MOH).
If you wish to have equipment which has higher specifications, because it better suit your needs, but is more costly than that recommended by the EMS Assessor. Ministry of Health funding may in some cases only cover the cost of the essential components of the equipment solution. The additional costs of the items must be paid by the person directly to the supplier.
This is called Partial funding.
ADVOCACY GROUPS & GRANTS
If you are not eligible for ACC or Ministry of Health funding and don’t have the means to pay for the equipment yourself, there are various Advocacy Groups that may have loan closets that can supply you with a grant or assist with the payment of equipment.
Cerebral Palsy Association
The purpose of this grant is to assist people with Cerebral Palsy to obtain items of services that mitigate the effects of living with Cerebral Palsy. Grants should assist a person’s independence and or quality of life, or in the case of a child, also that of the parents/family.
www.cerebralpalsy.org.nz/member-services/grants/individual-grants/
Muscular Dystrophy New Zealand
The purpose of this fund is to provide discretionary grants for individuals with a neuromuscular condition to access opportunities and specialised resources that enable them to achieve freedom.
Lottery grants for people with disabilities
Grants funded by Lotto help to pay for equipment for people with disabilities who want to be more closely involved in their communities.
https://www.govt.nz/browse/health/financial-help/lottery-grants-for-people-with-disabilities/
The Wilson Home Trust
If you are under 22 and live in the Upper North Island, The Wilson Home Trust offers a range of grants that aim to assist and improve the lives of children and young adults with physical disabilities, and their whanau.
https://www.wilsonhometrust.org.nz/grants/
FUNDRAISING PLATFORMS
Fundraising websites can be successful tools for raising the money needed to purchase an Obi.
There are a few online fundraising platform for New Zealanders to choose from:
www.gofundme.com
www.givealittle.co.nz
www.pledgeme.co.nz
Once you have created your campaign spread the word through multiple social media channels for optimal response.
