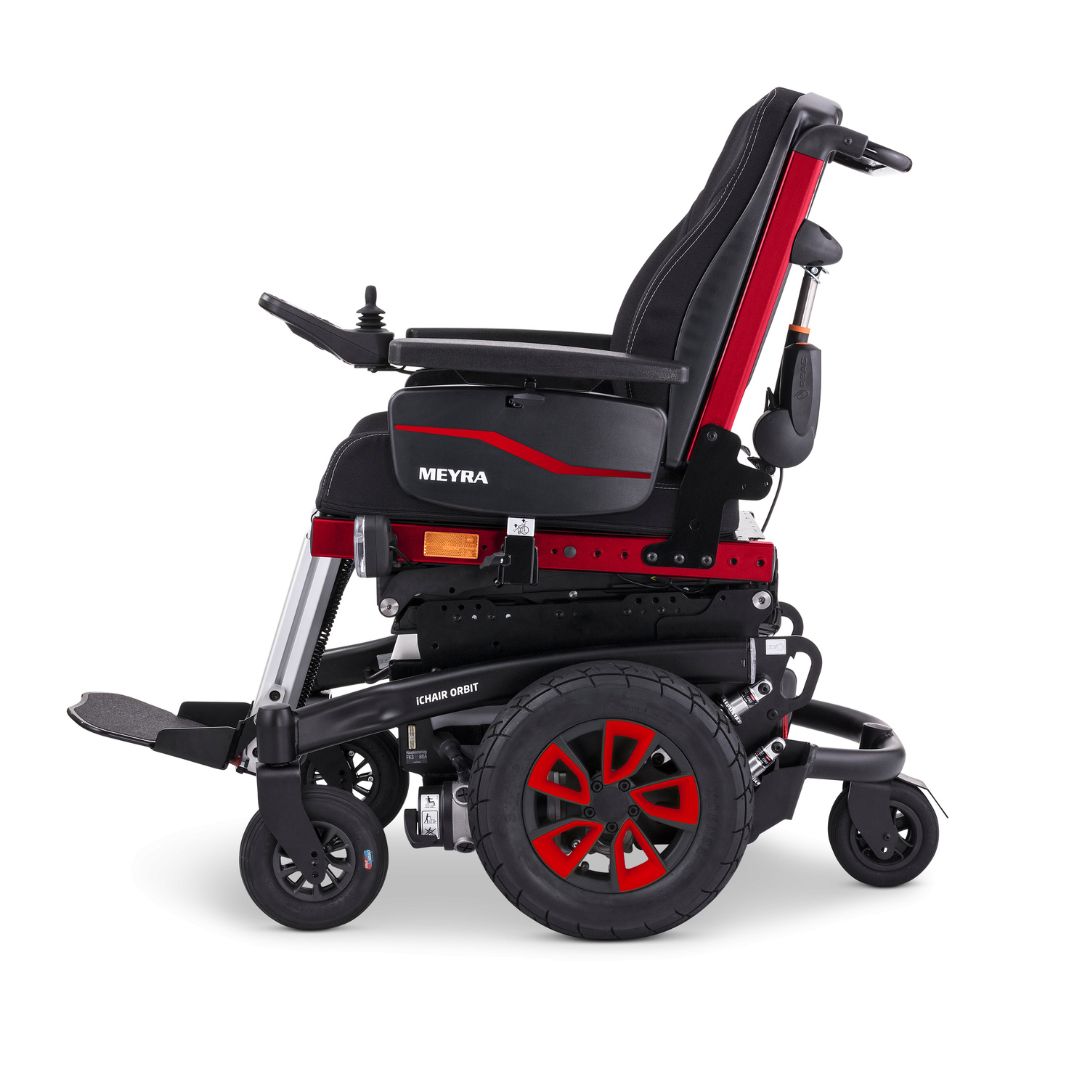

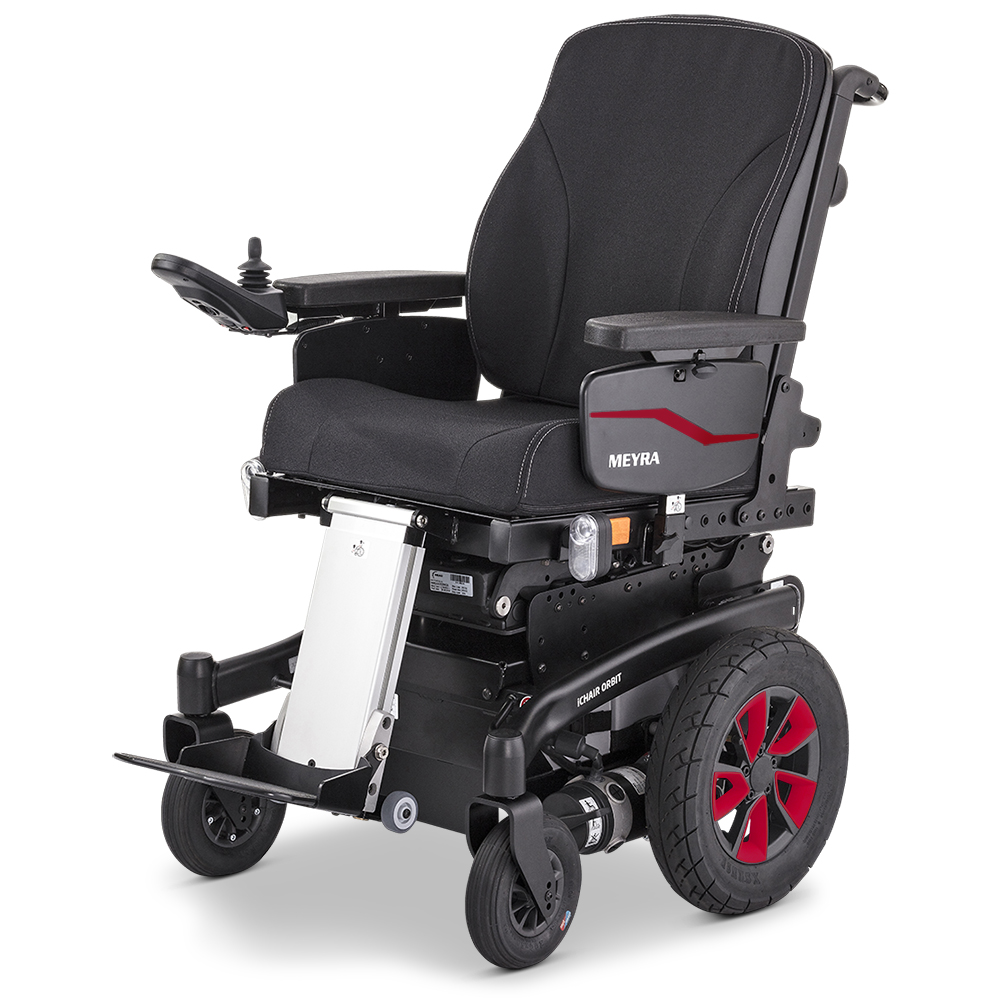

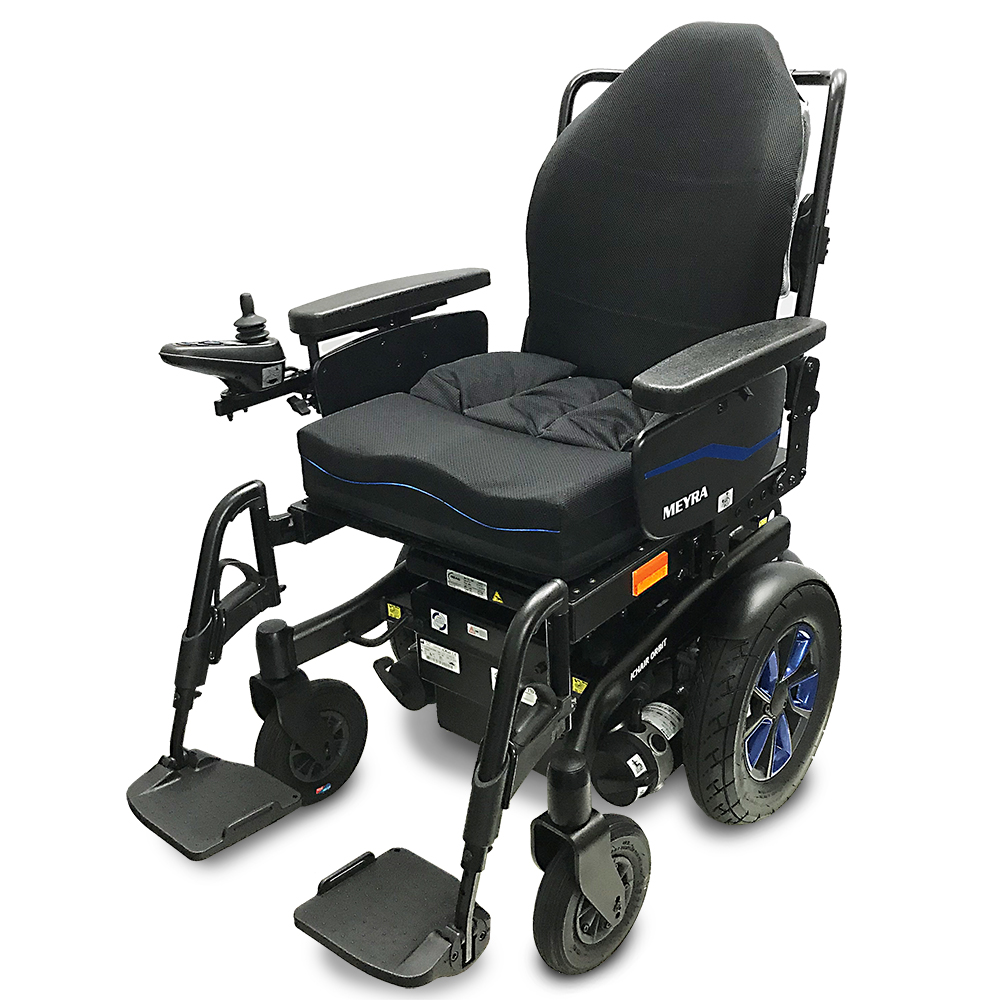

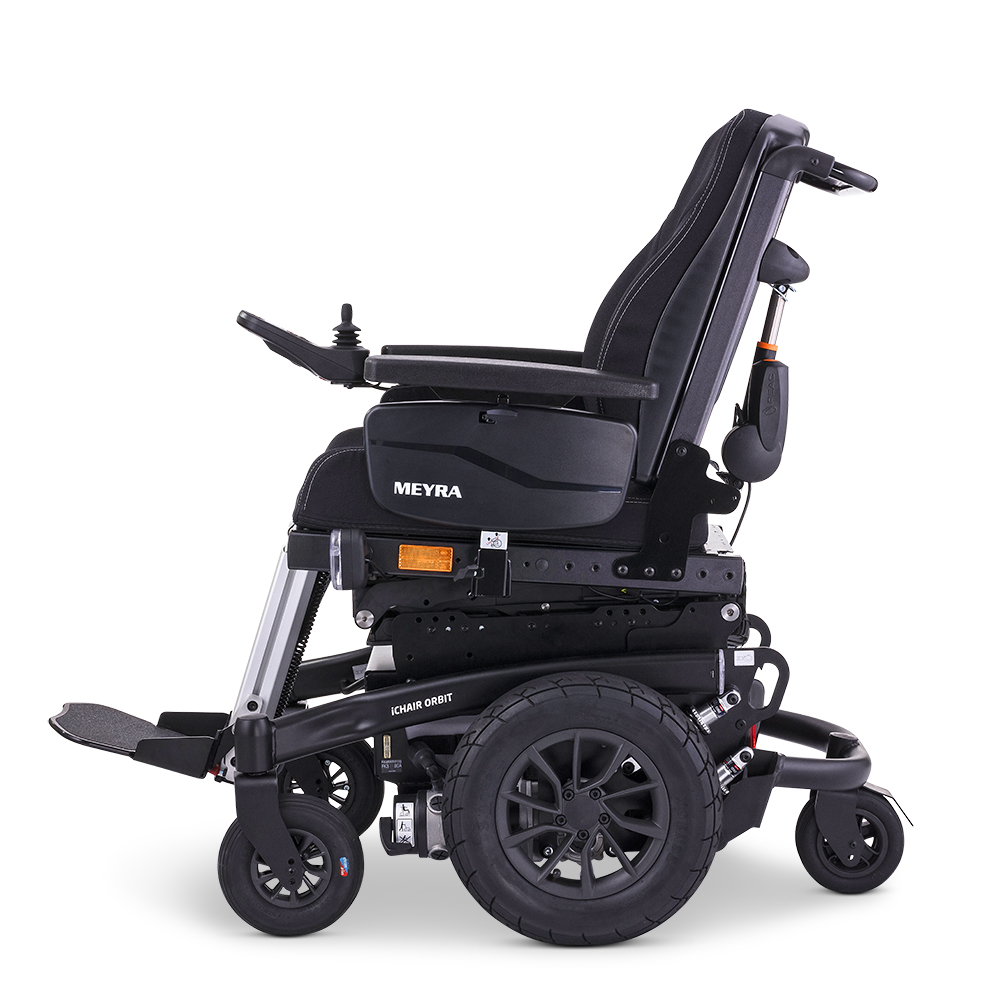

Meyra Orbit 160
Entry Level MWD Electric Wheelchair

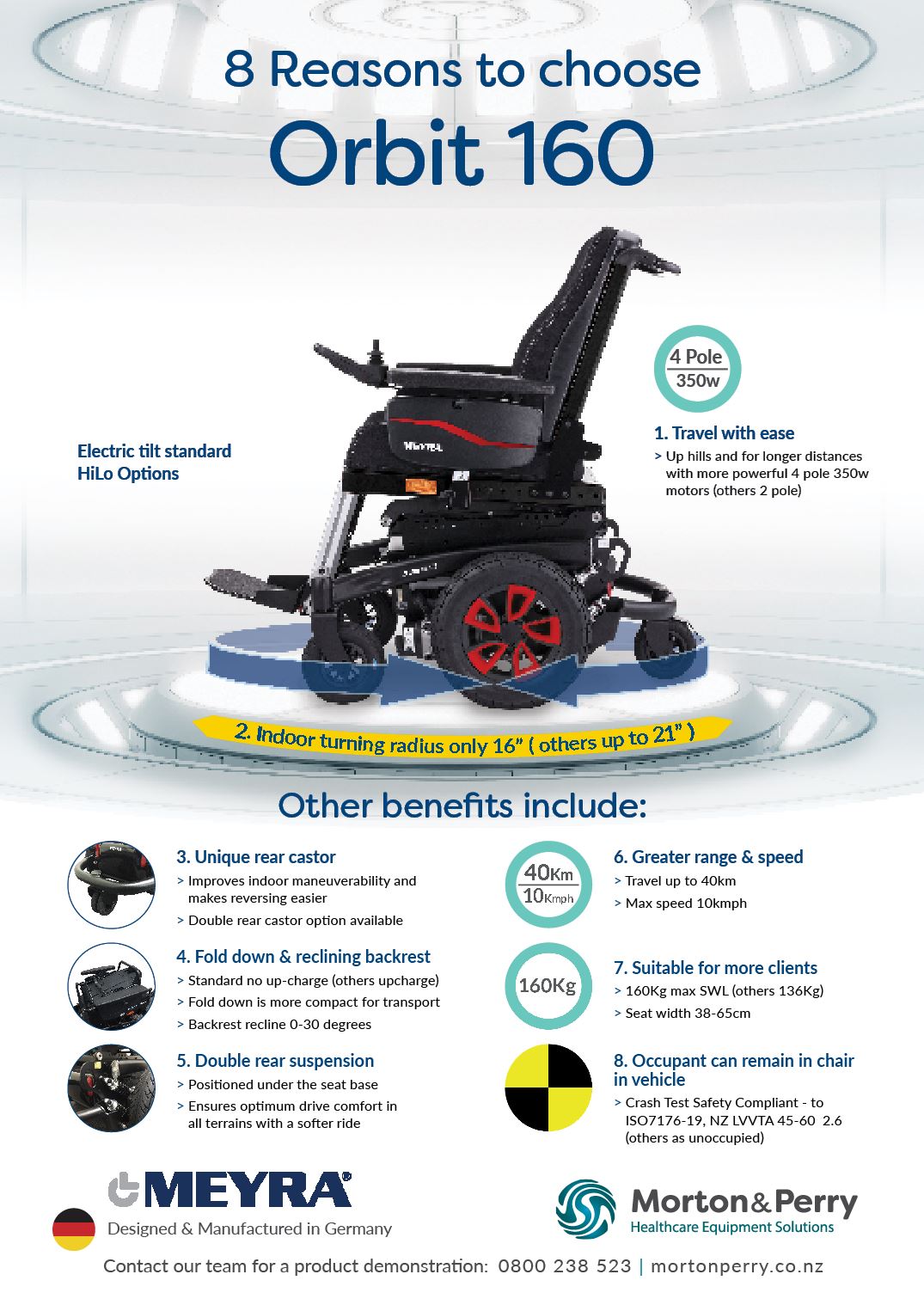

The Orbit 160 is ideal for someone who needs a good all-rounder, excellent maneuverability indoors and with the drive comfort to travel from home to the shops daily if required.
- The mid-wheel drive configuration and active rear suspension ensures optimum drive comfort in all terrains.
- The electric power tilt function (50° standard) offers improved driving on inclines and positioning for comfort.

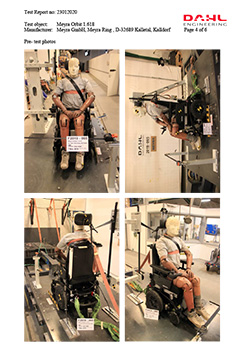

- Crash tested for occupant safety. Complies with international ISO7176-19, NZ LVVTA 45-60 2.6 safety standards for crash safety.
- Increased maximum user weight of 160Kg
MOH Enable Panel – Category D Approved (Therapist level 1)
Code: XME9160910
This product qualifies for Ministry of Health & ACC funding
Find out morePRICE ON APPLICATION
Turning Radius 40cm
- Very small radius at 40cm.
- Ideal for smaller confined spaces.
Fold down backrest
- Standard no up-charge.
- More Compact for transport.

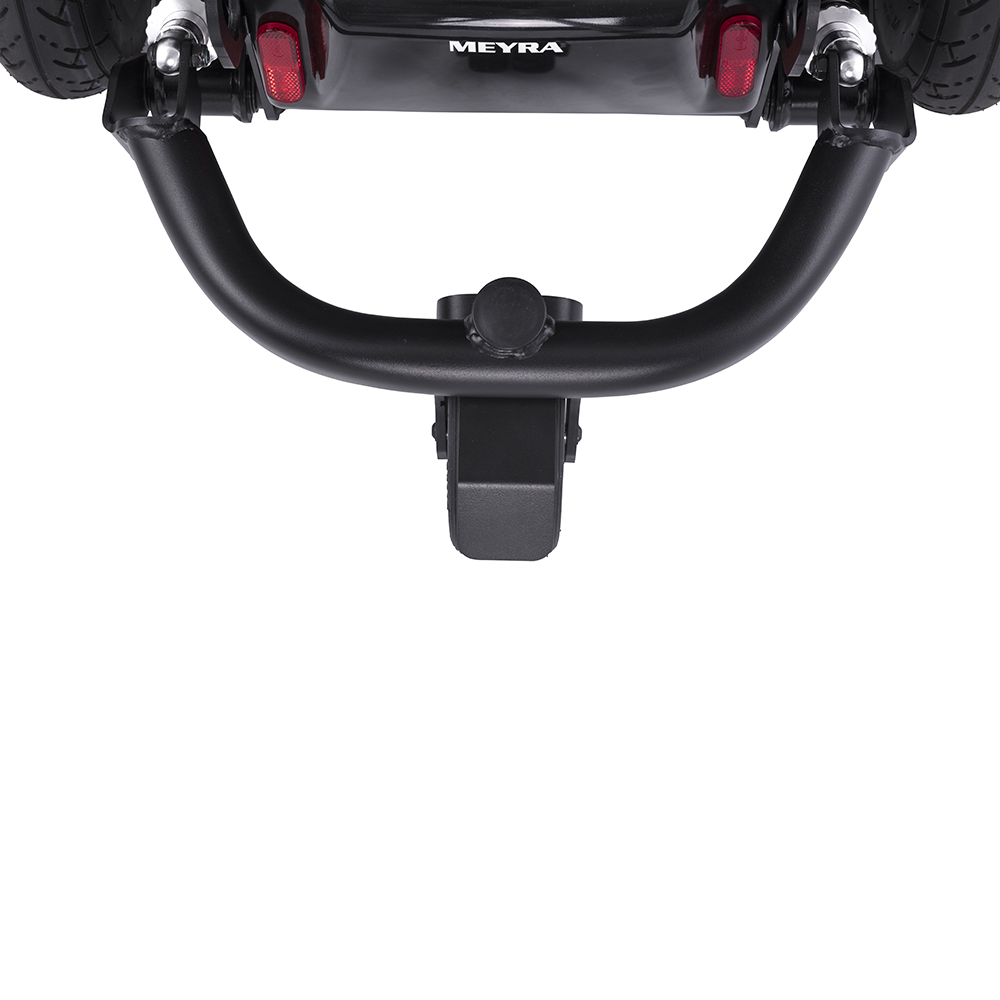

Unique single rear castor design
- Improves maneuverability indoors.
- Reduces damage risk to walls.
- More accurate reversing.
- Easier on outdoor kerbs.
Active rear suspension
Active rear suspension, positioned under the seat base, ensures optimum drive comfort in all terrains with a softer ride.

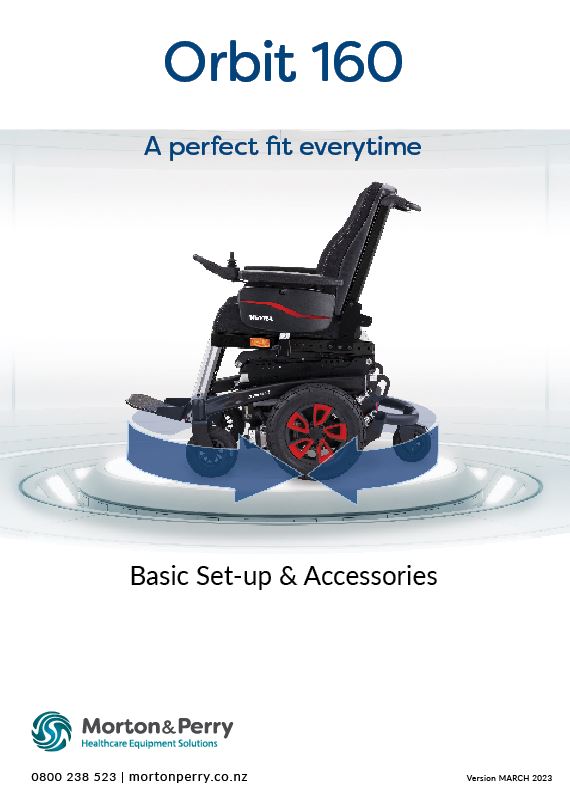

This product allows for customisation options please CLICK HERE to open the brochure that shows all the available options.
| Drive Configuration | MWD |
| Product Code | XME1618 |
| Floor to seatpan height | 44cm/17.5" - 51cm/20" |
| Back recline | 30° Manual (50° electric optional) |
| Backrest, fold-down | Yes |
| Legrest | Centre manual (Optional: swing-away manual or elevating manual) |
| Turning Radius | 40cm/16" |
| Chair width | 64cm/25" |
| Chair length without footrests | 93cm/36.5" |
| Range max. | 35-40km |
| Speed max. | 10km/h |
| Client weight max. | 160kg |
| Motor type | 4 Pole |
| Battery size | 50Ah x 2 |
| Battery charger Amp | 8Amp |
| Powerchair weight | 140kg |
| Seatplate width | 38-65cm/15-25.5" |
| Backrest width | 38-53cm/15-21" |
| Seatplate depth | 40-56cm/16-22" |
This product has a comprehensive list of accessories please CLICK HERE to open the brochure that shows all the accessories available.
